Description
The CP Carrillo CPN-3386 piston ring set is precision engineered for Yamaha SVHO, FZR, and FZS engines using 86mm standard bore cylinders from 2008 to 2015. This high performance ring pack delivers superior sealing, minimum blow-by, and exceptional durability in the demanding environment of supercharged and turbocharged 1.8L watercraft engines. Manufactured from premium materials by the world’s finest ring producers, these rings represent the gold standard in marine piston sealing technology.

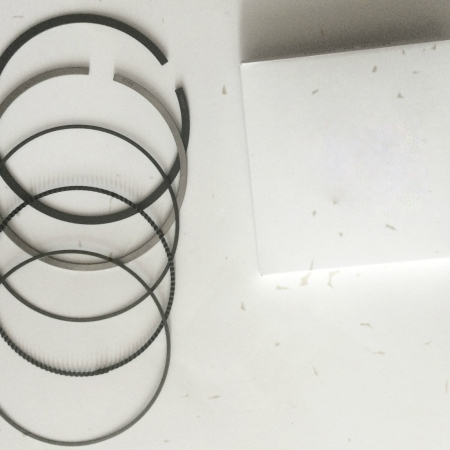

Each CPN-3386 ring set features a 1.0mm gas nitrided steel top ring for maximum compression seal, a 1.2mm taper hook groove Napier second ring for optimal oil control, and a 2.8mm flex vent oil ring that wipes cylinder walls clean while maintaining proper lubrication. The combination provides unmatched ring seal under high cylinder pressure while minimizing friction and drag. These ring sets are specifically packaged for CP Carrillo pistons but work with any quality aftermarket piston in this bore size.
- Application Yamaha SVHO/FZR/FZS 2008-2015 models with 86mm standard bore cylinders.
- Top ring 1.0mm gas nitrided steel for superior compression sealing and heat resistance.
- Second ring 1.2mm taper hook groove Napier design for excellent oil control and stability.
- Oil ring 2.8mm flex vent configuration wipes walls clean while maintaining lubrication.
- Sold per cylinder – 4 cylinder engines require quantity of 4 ring sets.
- Compatible with Nikasil cylinders and modern high performance marine coatings.
CP Carrillo piston rings are the choice of professional engine builders who demand perfect cylinder pressure, minimal oil consumption, and consistent power delivery season after season. The CPN-3386 ring set elevates any Yamaha 1.8L rebuild to professional race standards with engineering that handles extreme boost and rpm without compromise.
