Jet Ski Wake Setup: What Riders Need to Know
A jet ski wake setup is defined as the coordinated configuration of tow point, rope length, towing speed, weight distribution, and trim angle to produce a usable wake for tow sports like wakeboarding. Getting this configuration right determines wake height, shape, and rider safety. A poorly dialed setup produces a flat, inconsistent wake that frustrates riders and creates rope hazards. The right setup transforms a standard personal watercraft into a capable tow platform. Brands like Sea-Doo have published towing guidance specifically because the variables involved are easy to get wrong, and the consequences range from poor performance to genuine injury risk.
What is a jet ski wake setup and why does it matter?
A jet ski wake setup is the deliberate arrangement of five core variables: tow point, rope, speed, ballast, and trim. Each variable affects the others. Change one without adjusting the rest, and the wake suffers. Proper wake configuration requires using the correct center tow cleat or pylon and a wakeboard rope between 50–75 feet for the setup to function effectively.
The wake itself is the displaced water pushed outward and upward as the jet ski moves forward. A well-shaped wake gives wakeboarders a ramp to launch from and a predictable landing zone. A flat or choppy wake removes that ramp entirely. Riders who skip the setup process and just throw a rope on the back of their ski rarely get a satisfying result.
What are the essential components of a jet ski wake setup?
Every effective tow setup starts with the right hardware and a clear understanding of what each piece does.
Tow points are the foundation. The options include:
- Center cleats: Factory-installed on most modern jet skis. Suitable for light towing but not ideal for wakeboarding.
- Ski pylons: Elevated tow points that raise the rope angle, reducing drag on the rider and improving wake shape. Sea-Doo guidance identifies ski pylons over cleats as the correct choice for wakeboarding tow setups.
- D-rings and quick connects: Secondary attachment options used with aftermarket tow systems. Quick connects allow faster rope changes between riders.
Tow rope length directly controls rider stability and wake access. Beginners perform best at 50–55 feet, which keeps them closer to the wake and more stable. Advanced riders move out to 65–75 feet for more room to execute tricks. Shorter ropes are forgiving. Longer ropes demand more skill and a cleaner wake.
Towing speed sets the wake’s energy level. Recreational towing typically runs between 15–25 mph. For wakeboarding with a defined wake, speeds of 25–35 mph produce the best results. Speed below that range creates a mushy, undefined wake. Speed above it can overpower beginner riders.
Weight and ballast shape the wake from below. A heavier stern pushes the back of the ski deeper into the water, which increases wake height and volume. Ballast bags placed toward the rear are the most direct way to achieve this effect.
Trim angle controls the jet stream direction. Adjusting trim changes how the ski sits in the water and how water exits the nozzle. Steeper trim angles produce higher rooster tails and more dramatic wake shapes.
How do you adjust your jet ski wake for bigger or better results?

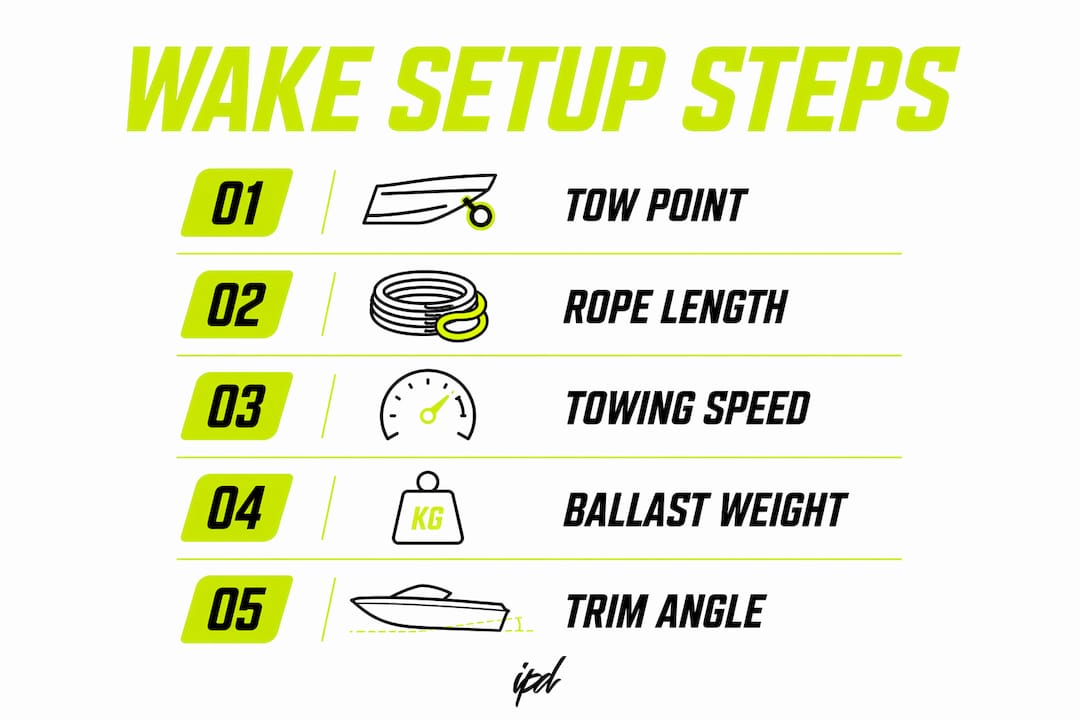

Tuning a wake setup is a process of incremental adjustments, not a single fix. Follow this sequence for the best outcome:
- Set your baseline speed. Start at 25 mph and assess the wake shape before changing anything else. Speed is the single biggest lever for wake size.
- Add rear ballast. Place ballast bags toward the stern. Rear-focused weight placement is more effective for wake growth than adding weight arbitrarily across the ski. Speeds between 25–35 mph combined with rear ballast produce the largest, most defined wakes.
- Adjust trim angle. Increase stern squat by trimming the nose up slightly. This pushes the rear deeper and amplifies the wake’s height and lip.
- Tune rope length to the rider. Match rope length to skill level first, then fine-tune based on where the rider wants to ride relative to the wake’s peak.
- Hold a steady course. Inconsistent speed and weaving lines destroy wake shape. A straight, consistent run at fixed throttle produces the cleanest wake every time.
Pro Tip: Fine-tuning speed and rider position after the first few runs is more effective than swapping equipment. Small speed adjustments maintain optimal rope geometry better than changing rope length between every run.
Experienced operators also use nozzle adjustments to influence jet stream direction and wake characteristics, which is worth exploring once the basics are dialed in.
What safety considerations apply to jet ski wake setups?
Safety in tow sports is non-negotiable. The rope, the rider, and the watercraft create a system with real injury potential when any element fails.
Key safety practices include:
- Use a spotter. Many jurisdictions legally require an observer besides the driver when towing behind a jet ski. The spotter watches the rider, manages rope slack, and communicates with the driver. A spotter’s role is to maintain constant visual contact and call out hazards before they become incidents.
- Attach rope to manufacturer-designated points only. Never attach a tow rope to handlebars, footwells, or any non-rated point. Using the wrong tow point is one of the most common causes of tow incidents on the water.
- Use hand signals and mirrors. Establish clear hand signals before the first run. Mirrors mounted on the ski help the driver monitor the rider without turning around.
- Avoid sharp turns and sudden acceleration. Both create dangerous rope angles and can throw a rider unexpectedly.
- Check local regulations. Towing rules vary by state and waterway. Know the minimum age, distance from shore, and observer requirements before launching.
“A spotter is not optional equipment. Clear communication and constant rider observation are what separate a safe tow session from an emergency.”
How to choose and attach the right tow rope for your setup
The rope is the only physical connection between the ski and the rider. Its quality and condition matter more than most riders realize.
| Rope Type | Recommended Length | Best Use |
|---|---|---|
| Wakeboard rope | 50–75 ft | Wakeboarding, tricks |
| Ski rope | 60–75 ft | Slalom water skiing |
| Tubing rope | 50–60 ft | Casual tubing, shorter pulls |
Wakeboard ropes require high breaking strength, padded handles, and quick-release connections. Padded handles reduce hand fatigue on long sessions. Quick-release connections allow immediate rope detachment in emergencies, which is a critical safety feature.
Ski ropes and tubing ropes are not interchangeable. Tubing ropes are shorter and built for lower-speed, higher-load pulls. Using a tubing rope for wakeboarding puts the rider too close to the ski and creates dangerous slack.
For connection methods, the lark’s head knot and cleat hitch are the two most reliable options for attaching rope to a tow point. Quick-connect hardware is the fastest and most secure option when the tow point supports it. Check the rope for fraying, UV damage, and worn handle grips before every session. A rope that fails mid-run creates an immediate hazard for both the rider and nearby watercraft.

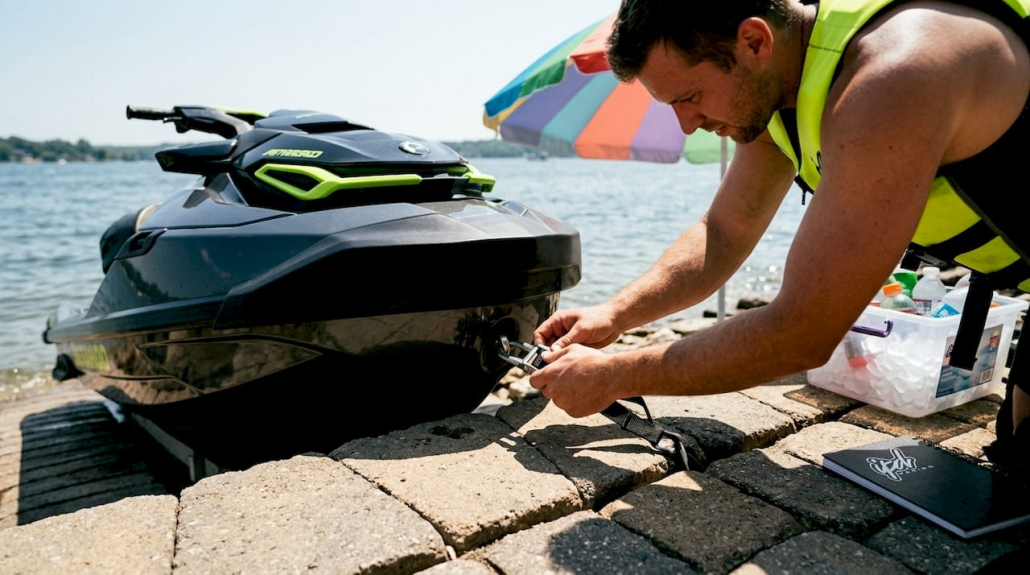

Pro Tip: Always rig the rope before launching. Attaching a tow rope in the water while managing throttle and rider position creates unnecessary risk. Rig on the dock, then launch.
For a full breakdown of jet ski towing equipment and how sub-hooks and tow points interact, IPD Racing has a dedicated guide worth reading before your next session.
Key Takeaways
A jet ski wake setup requires correct tow point selection, matched rope length, controlled speed between 25–35 mph, rear-focused ballast, and trim adjustment to produce a defined, rideable wake.
| Point | Details |
|---|---|
| Tow point selection | Use a ski pylon, not a center cleat or non-rated point, for wakeboarding. |
| Rope length by skill | Beginners use 50–55 ft; advanced riders move to 65–75 ft for tricks. |
| Speed and ballast | Run 25–35 mph with rear ballast for the largest, most defined wake. |
| Safety requires a spotter | Many jurisdictions legally require an observer when towing behind a jet ski. |
| Fine-tune before swapping gear | Adjust speed and rider position first before changing rope length or equipment. |
What I’ve learned from watching riders get this wrong
Most riders who struggle with wake quality are chasing the wrong variable. They swap ropes, try different attachment points, and adjust trim obsessively, but they never fix their speed consistency. Speed is the foundation. A rider who holds 28 mph on a straight line with rear ballast will get a better wake than someone running 35 mph with perfect trim but wandering throttle.
The second mistake I see constantly is skipping the spotter. Riders treat it as optional, especially on quiet water. It is not optional. The spotter is the only person watching the rope and the rider simultaneously. The driver cannot do both. One moment of inattention with a slack rope in the water is all it takes for a serious entanglement.
Ballast placement is the third area where riders leave performance on the table. Adding weight to the center of the ski does almost nothing for wake height. Weight needs to go to the stern. That stern squat is what pushes water outward and upward into a defined wake lip. Once riders understand that rear weight placement is the mechanism, not just adding weight anywhere, the results improve immediately.
The last thing worth saying: communication before the run matters as much as the setup itself. Agree on hand signals, confirm the spotter is ready, and do a slow pass before going to full speed. A well-prepared crew gets more quality runs in a session than a crew that wings it and deals with problems reactively.
— Casey
Performance parts that support a better wake setup
Riders who want to push their wake setup further need the right hardware behind the configuration work.
IPD Racing carries performance parts and accessories built for riders who take their time on the water seriously. From tow pylons and ballast bags to ropes, quick connects, and trim components, the IPD Racing shop stocks gear that supports every stage of wake setup tuning. Riders looking for aftermarket upgrades that affect speed, trim, and jet stream performance will find options across recreation, freestyle, and performance categories. If you are building out a tow setup from scratch or upgrading specific components, IPD Racing is a reliable source for parts that are matched to PWC applications.
FAQ
What is a jet ski wake setup?
A jet ski wake setup is the combined configuration of tow point, rope length, speed, ballast, and trim angle used to produce a defined wake for tow sports like wakeboarding. Each variable affects wake height, shape, and rider safety.
What rope length is best for wakeboarding behind a jet ski?
Beginners should use a rope between 50–55 feet for stability. Advanced riders typically extend to 65–75 feet to access the wake’s peak and perform tricks.
How fast should you go for wakeboarding on a jet ski?
Speeds between 25–35 mph produce the best wake size and shape for wakeboarding. Lower speeds create a flat, undefined wake that limits rider performance.
Do you need a spotter when towing behind a jet ski?
Many jurisdictions legally require an observer besides the driver when towing. The spotter watches the rider, manages rope slack, and communicates hazards to the driver.
What affects jet ski wake height the most?
Speed and rear ballast placement have the greatest impact on wake height. Running at 25–35 mph with weight concentrated toward the stern produces the largest, most defined wake.
